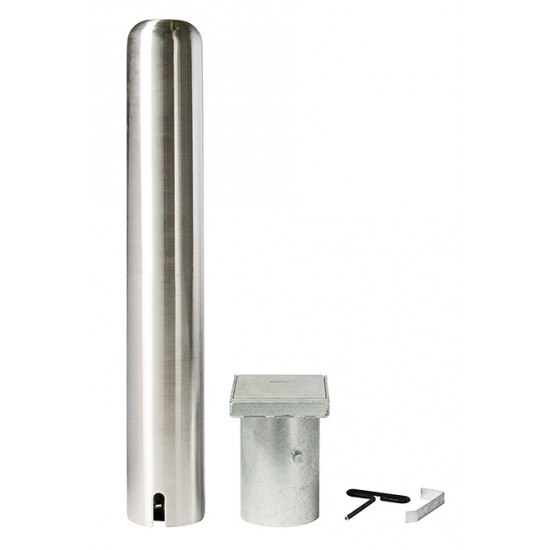

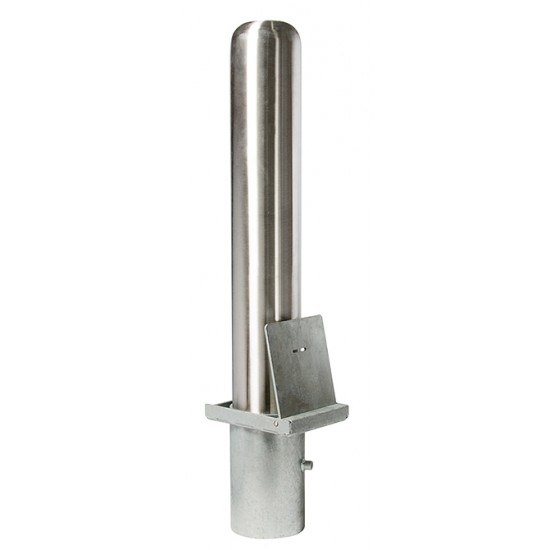

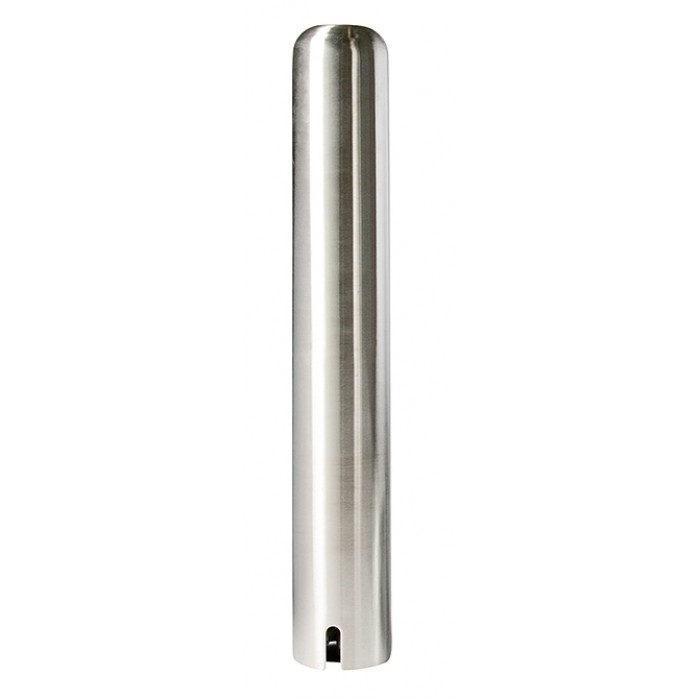

Helix Lock - Model HL2006SL

Specifications

Patent	US Patent No. # 8,297,873
Mechanism	Helix Lock
Lock Visibility	Internal / Concealed
Height	36"
Weight	70 lbs.
Size	6.625" OD
Material	304 Stainless
Sleeve	Galvanized Lidded Sleeve
Installation Type	Flush
Wall	.280"

Request a Quote

Spec Sheet Submittals

CAD Details

Helix Lockable Bollards are manufactured in the U.S.
U.S. 304 Stainless Steel
Helix lock steel bollard posts have a #4 Brushed Finish
Patented internal dead bolt lock system
Lidded and standard sleeves available
