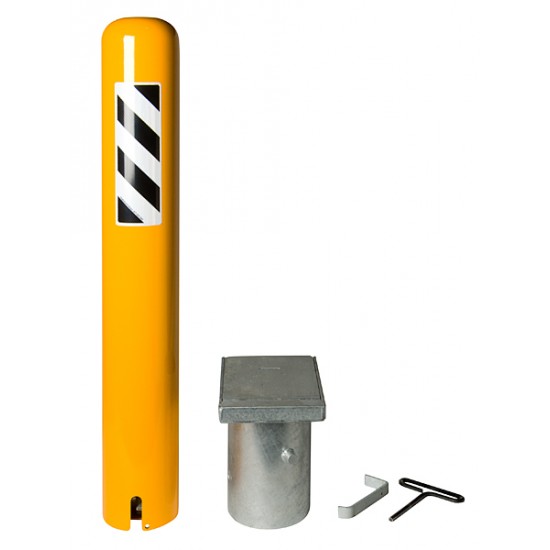

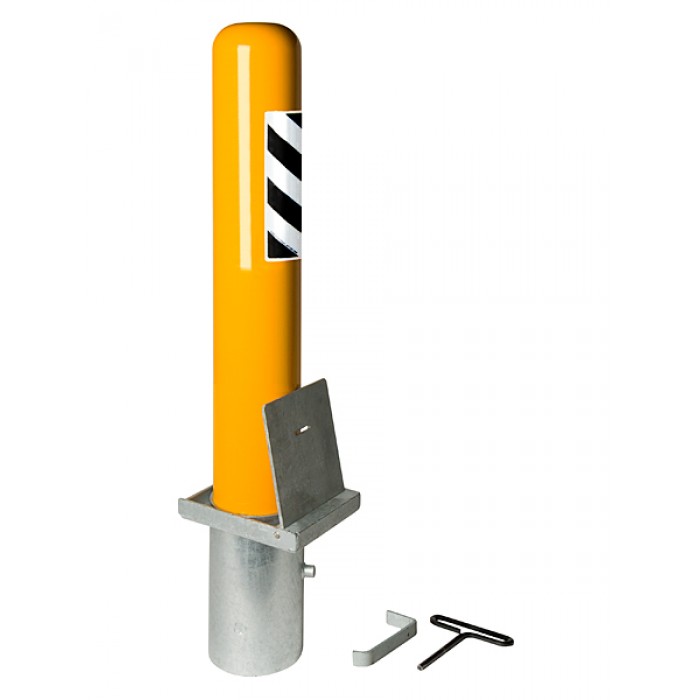

Locking Helix Lock Series [HL2006L]

Specifications

Mechanism	Helix Lock
Lock Visibility	Internal / Concealed
Height	36"
Weight	70 lbs.
Size	6.625" OD
Material	Carbon Steel / Powder Coated
Sleeve	Galvanized Lidded Sleeve
Installation Type	Flush
Wall	.280"

Request a Quote

Spec Sheet Submittals

CAD Details

U.S. Patent 8,297,873

Benefits:

All TrafficGuard, Inc products feature heavy duty steel construction
Architectural look
Completely concealed locking system
Galvanized lidded ground sleeve instantly provides flush surface
Utilizes patented helix
Storage racks available for each size in hot dipped galvanized finish
All surfaces are primed with rust & corrosion resistant, zinc rich primer w/5,000 hour salt spray performance
Standard finish, TGIC polyester outdoor finish RAL1028 yellow
36″ tall, 6.625″ OD, .280″ wall thickness, 70 lb. post weight

Benefits

All TrafficGuard, Inc products feature heavy duty steel construction
Architectural look
Completely concealed locking system
Galvanized lidded ground sleeve instantly provides flush surface
Utilizes patented helix
Storage racks available for each size in hot dipped galvanized finish
All surfaces are primed with rust & corrosion resistant, zinc rich primer w/5,000 hour salt spray performance
Standard finish, TGIC polyester outdoor finish RAL1028 yellow
36″ tall, 6.625″ OD, .280″ wall thickness, 70 lb. post weight

Powder-Coated Bollards are Available in a Range of Color Options

TrafficGuard® bollards are finished in Tiger Drylac powder coating, standard. Some common color requests are shown below, with a wide range of color options available upon request.

RAL 1028
Yellow

RAL 9005
Black

RAL 8014
Sepia Brown

RAL 7042
Traffic Grey

Custom Colors
Available

Custom Colors

Note: These swatches are a representation of the colors available, and may not be exact.
