Locking Helix Lock Series [HL2006]

  • Buy American
  • Carbon Steel / Powder Coated
  • 6.625" Outside Diameter

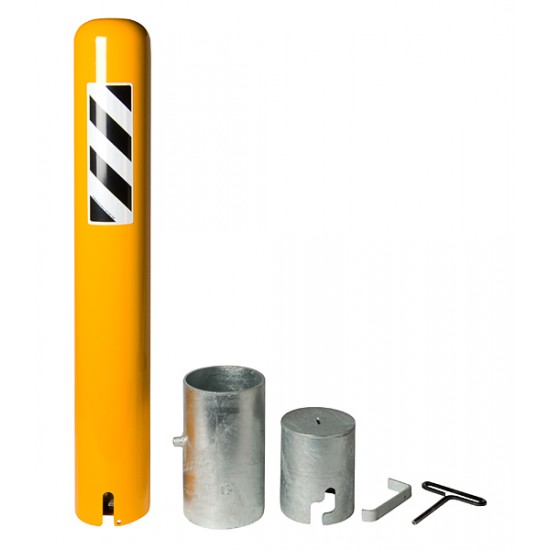

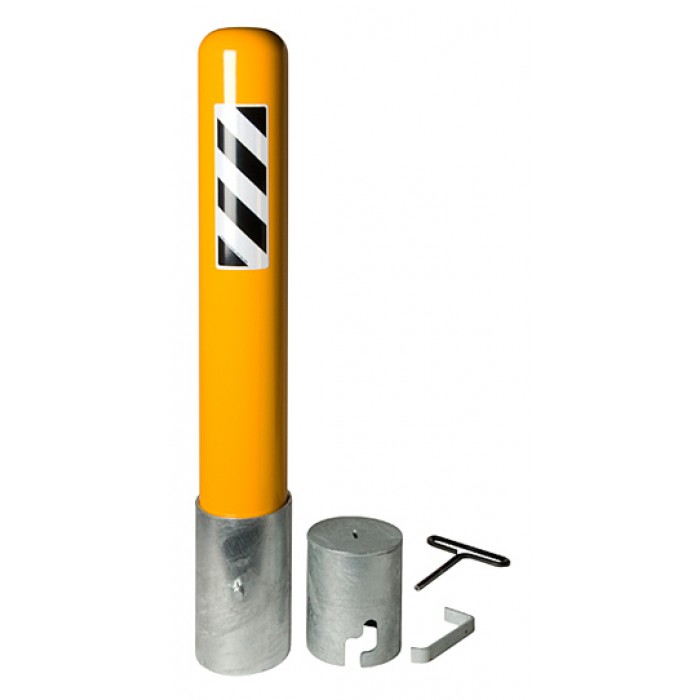

Locking Helix Lock Series [HL2006]

Diameter/Weight 6.625" OD - 70 lbs.
Bollard Height 36"
Wall .280"
Locking System Concealed / Internal
Mount Flush
Sleeve Galvanized Ground Sleeve / Filler Piece
Finish Carbon Steel / Powder Coated
Storage Racks 2, 4 & 6 unit
Request A Quote

U.S. Patent 8,297,873

*TrafficGuard, Inc complies with the Buy American Act (41 U.S.C 8302-8305)


  • All TrafficGuard®, Inc. products feature heavy duty steel construction
  • Architectural look
  • Completely concealed locking system
  • Flush mount when lockable protective bollard is removed
  • Hot dipped galvanized ground sleeve and filler piece included
  • Storage racks available for each size in hot dipped galvanized finish
  • All surfaces are primed with rust & corrosion resistant, zinc rich primer w/5,000 hour salt spray performance
  • Standard finish, TGIC polyester outdoor finish RAL1028 yellow
  • 36″ tall, 6.625″ OD, .280″ wall thickness, 70 lb. post weight

For many applications, where more vehicle protection is required, a larger security post may be needed.  At many military installation and government buildings around the US, the 6.625” outside diameter removable bollard has become common place, falling under the guidelines of ‘best practices.’   While many of these units have never been formally been tested, they have proven effective security solutions over time in the field, both in their ability to impede a vehicles progress at low speed and to provide deterrence to encourage vehicles to stay out of particular areas.

The TrafficGuard® 6.625” OD Helix Lock Bollard (HL2006) is one such solution that has been deployed at government buildings around the US.   It’s easy to use, and durable locking system functions with a t-handle allen key.  It provides a heavy duty perimeter protection that is ideal for heavy use in the field.  The HL2006 ground sleeve / filler piece option provides an ideal bollard ground sleeve for heavy traffic and government facilities.


Locking System
