TRAFFICGUARD® CORE-IN PROTECTION SYSTEMS: QUICK INSTALLATION CRASH RATED BOLLARDS



Protect your assets overnight with TrafficGuard® Core-In Protection Systems featuring US Patent 11,124,934 foundation technology.

  • Patented US Patent 11,124,934 centering / stress bracket makes installation easy and ensures centering for omnidirectional impact.
  • Bollard Warehouse, Inc. is the licensed manufacturer of TrafficGuard ®, Inc. ASTM F3016 crash tested bollard line.
  • Rapid installation in existing slabs of 3” or more.
  • ASTM F3016 10 & 20 MPH fixed & removable bollard solutions.
  • Removable units feature patented (US Patent 8,297,873) Helix Lock locking system.
  • Removable units feature traffic rated sleeves.
  • Fixed and Removable units available with signage.
  • US Engineered, Tested & Manufactured.

REQUEST A CORE-IN TRAFFIC BOLLARD QUOTE

Please complete the form below to get a price quote for a bollard and one of our representatives will get back to you as soon as possible.

Request a Quote

ASTM F3016 CRASH TESTED

Find a full line of 10, 20 and 30 MPH bollards to comply with the ASTM F3016 Standard Test Method for Surrogate Testing of Vehicle Impact Protective Devices at Low Speeds at Bollard Warehouse. See product line.



AVAILABLE CORE IN BOLLARD MODEL OPTIONS

TrafficGuard ®, Inc drawing on 20 + years of industry experience, is the first bollard company to test to ASTM F3016 as well as the first to offer crash tested and crash rated product that meets ASTM F3016.


10 MPH QUICK INSTALLATION REMOVABLE CORE-IN BOLLARD – 5” (CIR HL2005 S10)

  • Core-In ASTM F3016 S10 (10MPH) crash tested bollard system
  • 5.563” x 48” Galvanized Post, 36” above grade
  • Galvanized Stress Bracket (US Patent 11,124,934)
  • Galvanized 18” ground sleeve
  • Galvanized helix lock filler piece
  • Galvanized 29” pipe extension for ground sleeve
  • Tested with HDPE cover

20 MPH QUICK INSTALLATION REMOVABLE CORE-IN BOLLARD – 6” (CIR HL2006 S20)

  • Core-In ASTM F3016 S20 (10MPH) crash tested bollard system
  • 6.625” x 48” Galvanized Post, 36” above grade
  • Galvanized Stress Bracket (US Patent 11,124,934)
  • Galvanized 24” ground sleeve
  • Galvanized helix lock filler piece
  • Galvanized 29” pipe extension for ground sleeve
  • Tested with HDPE cover

30 MPH -- --

  • Core-In ASTM F3016 S10 (10MPH) crash tested bollard system
  • 5.563” x 48” Galvanized Post, 36” above grade
  • Galvanized Stress Bracket (US Patent 11,124,934)
  • Galvanized 18” ground sleeve
  • Galvanized helix lock filler piece
  • Galvanized 29” pipe extension for ground sleeve
  • Tested with HDPE cover

**All systems available in Galvanized, Stainless Steel & Carbon Steel / Powder Coated Post Finishes

**All systems tested with signage

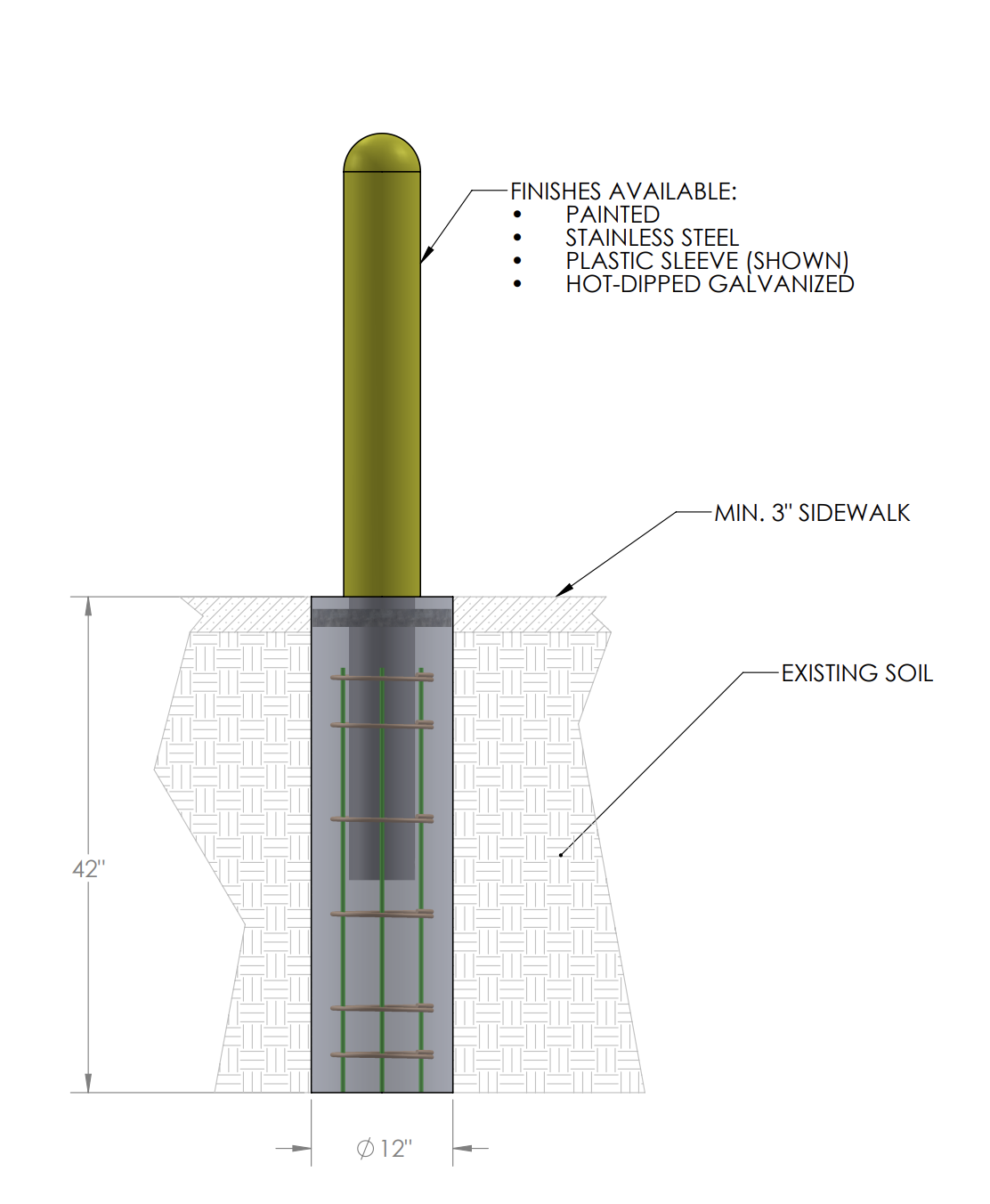

Core In Standard | Trafficguard
Standard

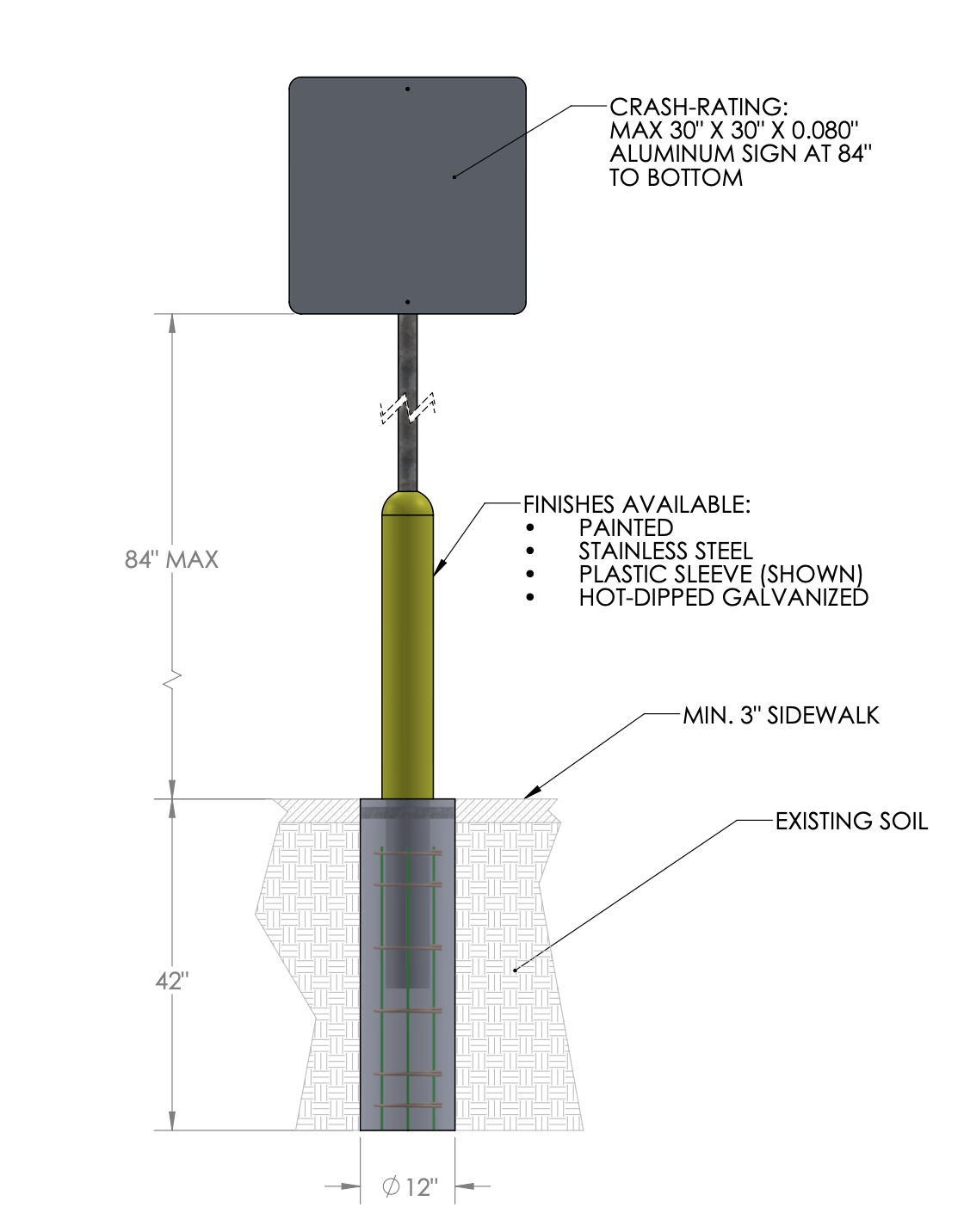

Core In With Signage | Trafficguard
With Signage

SPEC DOWNLOADS

Concrete Surround

  • 10 MPH Removable Bollard – 5” (CIR HL2005 S10)
    View Spec
  • 10 MPH Removable Bollard – 5” (CIR HL2005 S10 w/signage)
    View Spec
  • 20 MPH Removable Bollard – 6” (CIR HL2006 S20)
    View Spec
View All
  • 20 MPH Removable Bollard – 6” (CIR HL2006 S20 w/signage)
    View Spec
  • 10 MPH Fixed Bollard – 5” (CIF 5560 S10)
    View Spec
  • 10 MPH Fixed Bollard – 5” (CIF 5560 S10 w/signage)
    View Spec
  • 20 MPH Fixed Bollard – 6” (CIF 6660 S20)
    View Spec
  • 20 MPH Fixed Bollard – 6” (CIF 6660 S20 w/signage)
    View Spec

Asphalt Surround

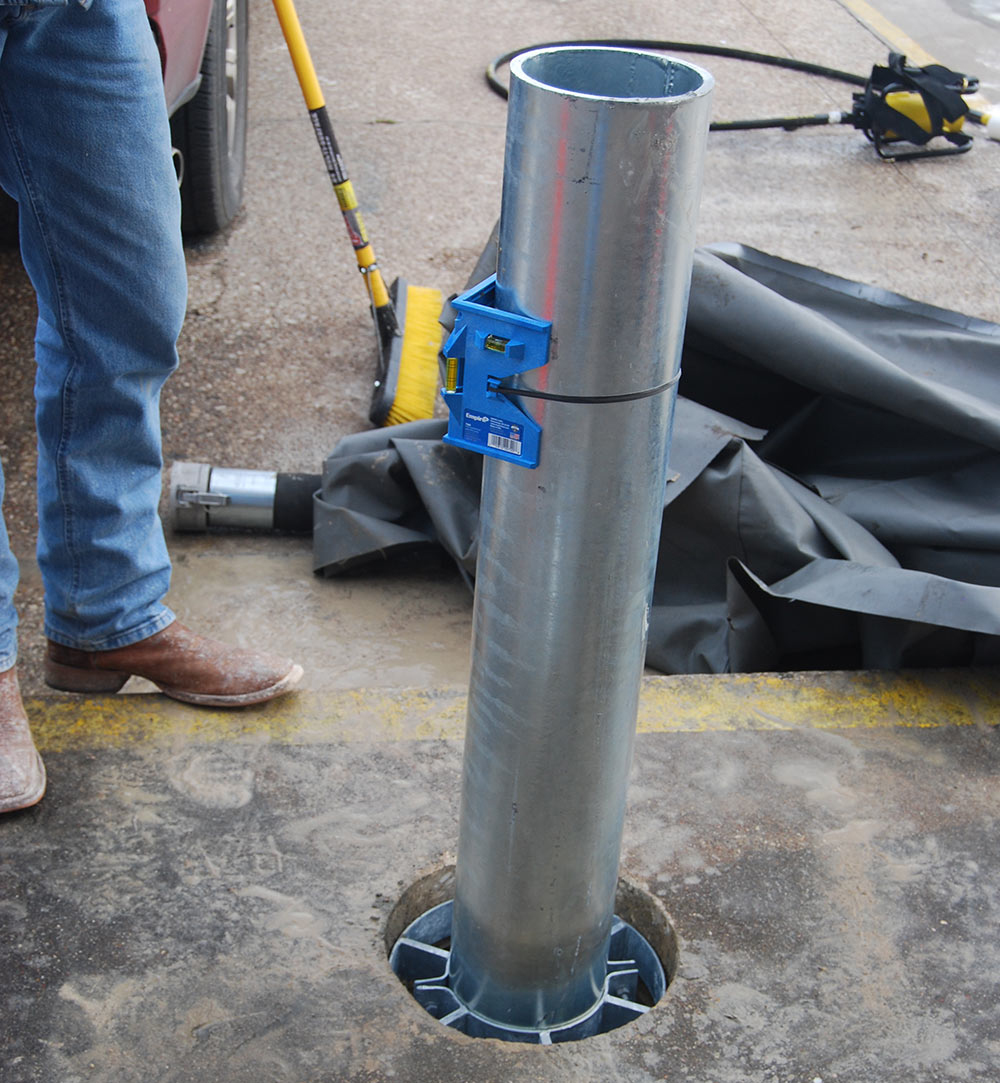

INSTALLATION METHODS

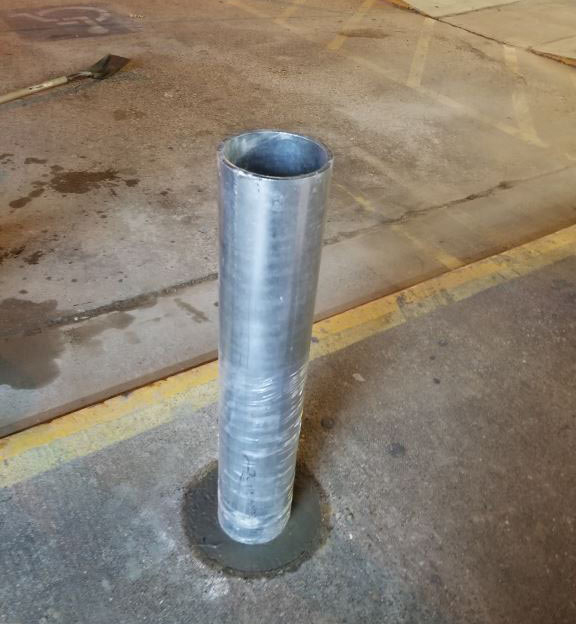

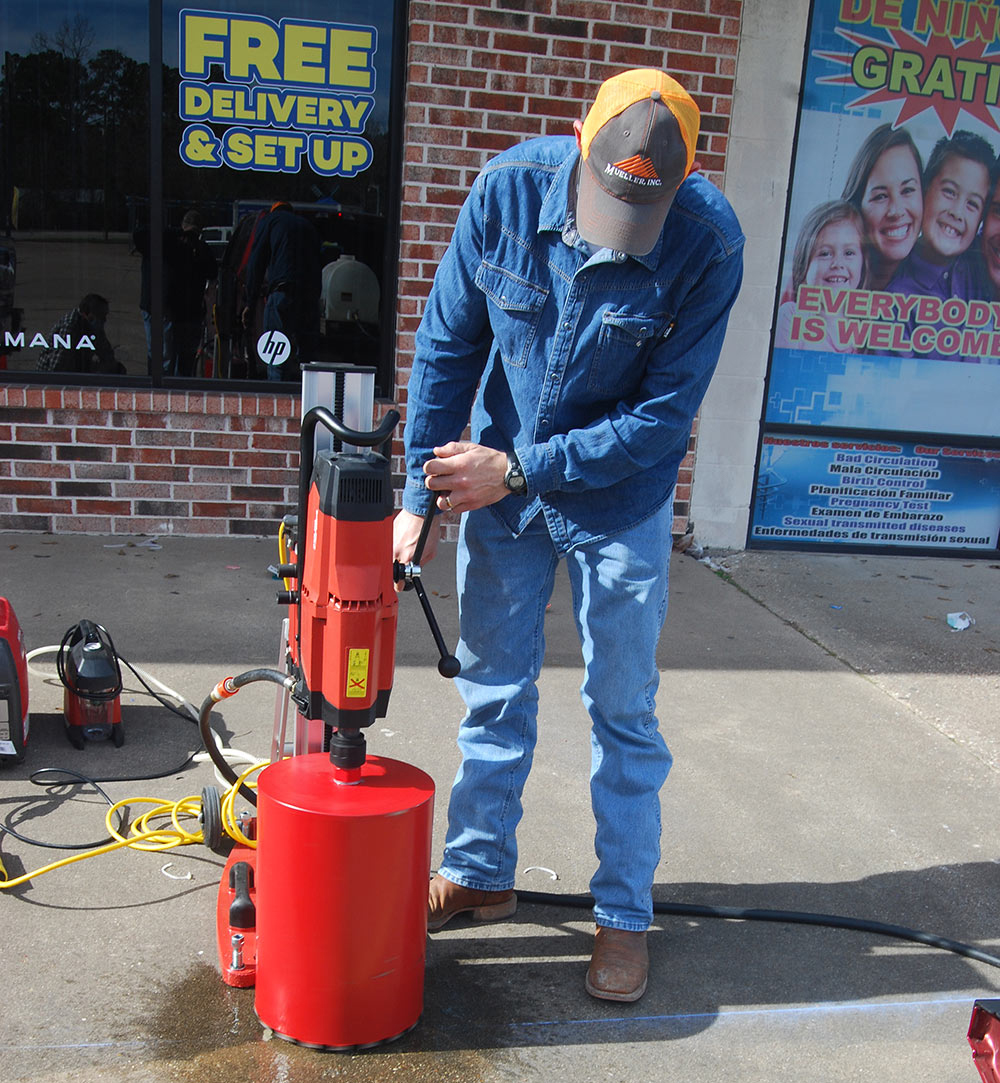

TrafficGuard® Core-In Protections Systems make securing your facility with ASTM F3016 removable and fixed bollards make installation quick and inexpensive.  Geared towards retrofit applications that require protection from vehicle incursions, bollards can now be installed with a minimally invasive installation process and few relatively simple steps in existing slabs of 3” or more.



The fixed bollard Core-In System is shipped with a hot dipped galvanized rebar cage, a US Patent 11,124,934 hot dipped galvanized stress / centering bracket and galvanized bollard post.  The stress bracket makes centering and spacing bollards easy and fast.

The removable bollard Core-In Systems is shipped with a hot dipped galvanized pipe stand, a US Patent 11,124,934 hot dipped galvanized stress / centering bracket and galvanized helix lock bollard post.  Removable ASTM F3016 bollards allow vehicle access where required and feature the patented (U.S. Patent 8,297,873) helix lock system, providing a clean look.

cad logo

Plan Your Layout

Access Our Cad Drawings

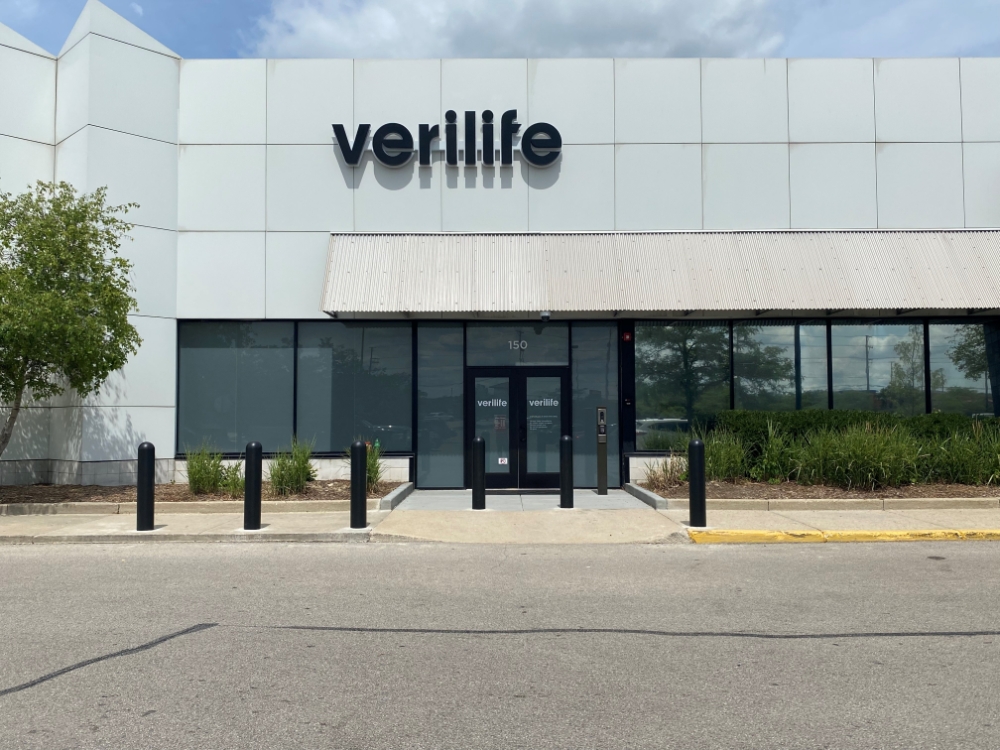

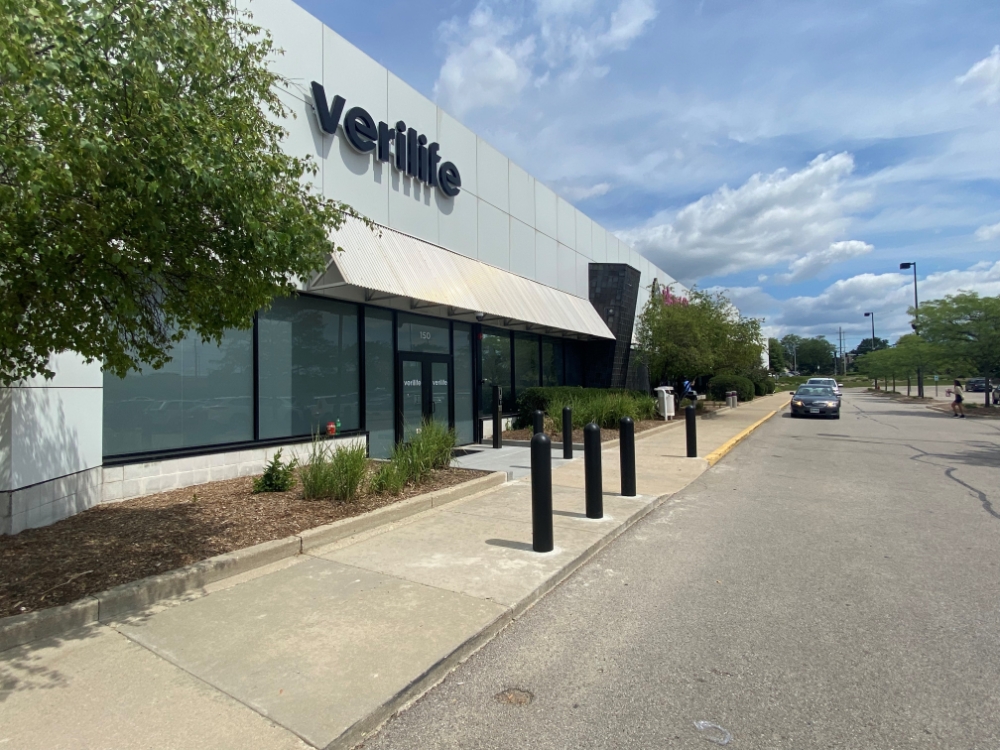

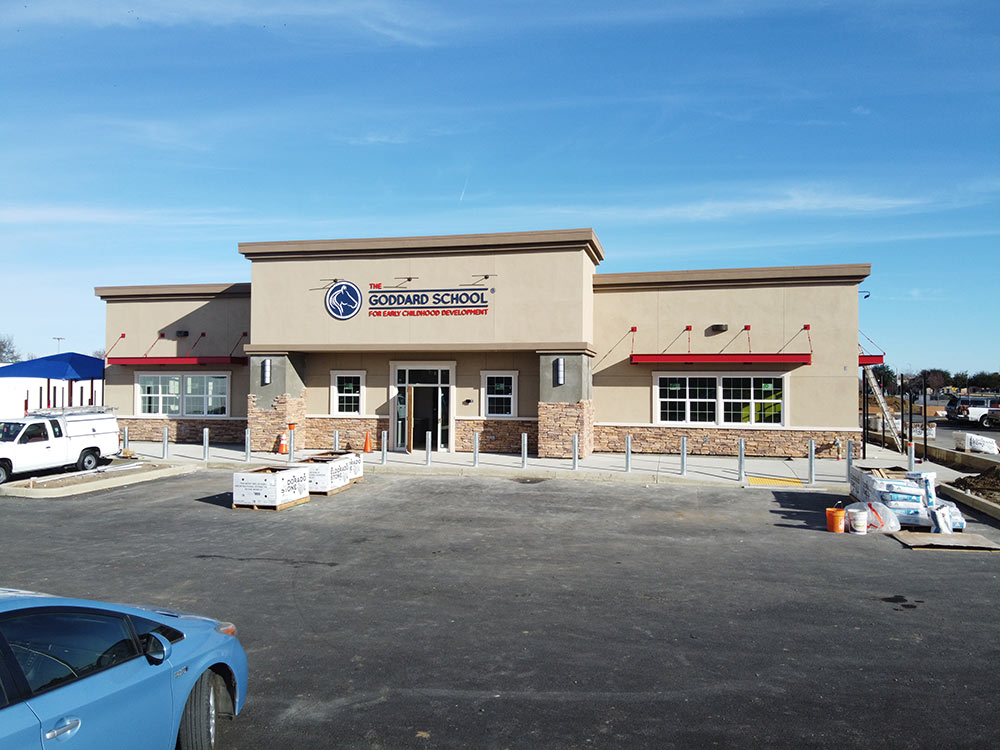

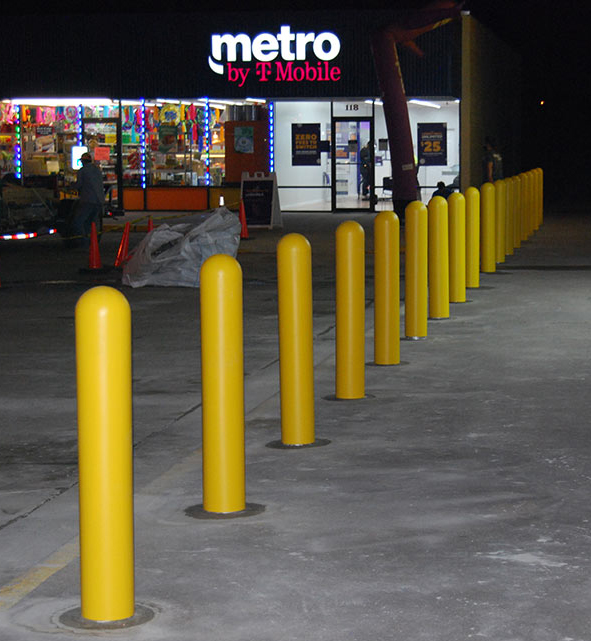

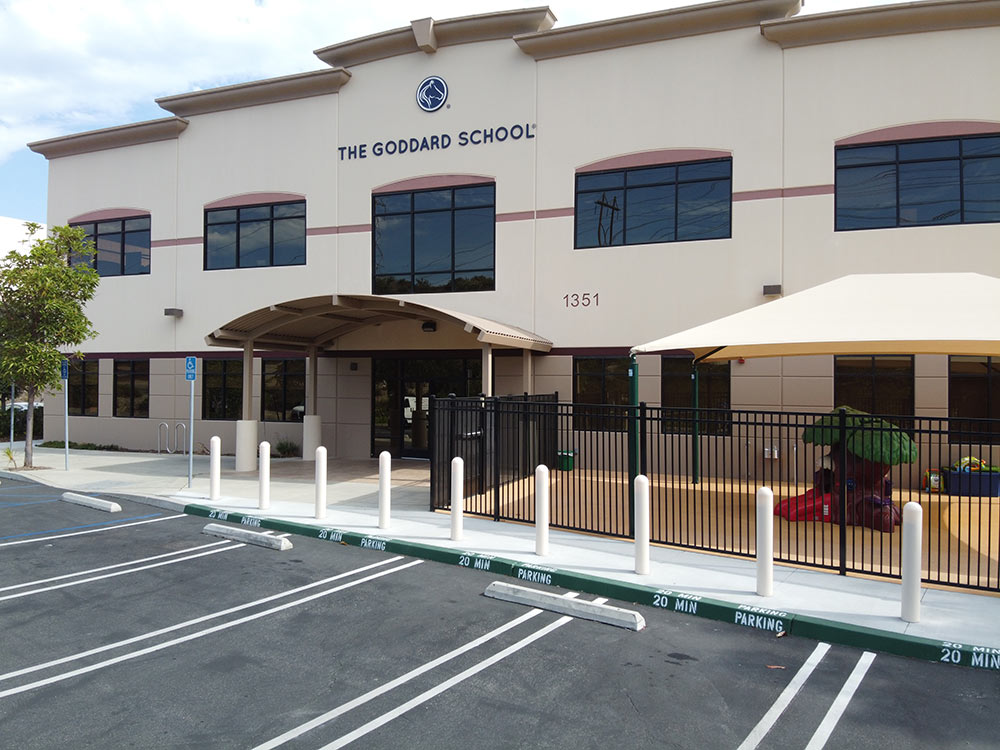

PROTECTING FACILITIES ACROSS THE NATION

ASK US ABOUT OUR CORE-IN QUICK INSTALLATION CRASH RATED BOLLARDS

TrafficGuard® quick installation crash rated bollards are always high quality and reliable—and they also comply with the Buy American Act (41 U.S.C 8302-8305). Browse our fixed and removable rapid installation crash tested bollards available online today! If you have any questions about our products or want to request a quote, please contact our team today.
